Standard Tanks and Moulded Tanks

Standard tanks for Fuel, Water and Waste
The standard tanks come in a range of different dimensions which are listed, with prices in the Catalogue section.  The connections are made through the hatch.  Hatches and fittings need to be specified and bought separately according to the type of tank.

The standard fuel tanks come complete with a hatch which includes, as a minimum, a filler hole, outlet hole with dip tube, and ventilation hole.
The standard water tank comes with an inspection cover without holes or connections.  A hatch needs to be bought separately.
The standard holding tanks come with a hatch with a filler hole, outlet hole with dip tube, ventilation hole and flush hole. Elbow or straight hosetails and blanks need to be bought separately.

Moulded tanks
Please talk to us about your requirements, we can produce regular or irregular shaped tanks in polyethylene to your exact specifications, in quantity.  This is an interesting option for boat or vehicle manufacturers where multiple tanks in polyethylene are required.

Standard Fuel Tanks

CE marked fuel tanks suitable for petrol and diesel. Manufactured from High Density Polyethylene. These tanks are red in colour and come complete with inspection hatch, filler cap with vent and an 10mm fitting with pickup pipe for fuel feed. A fuel return may also be fitted. If you prefer there is a separate vent fitting located next to the feed. This is a 1/2" hose tail.

We can change the size of the fittings if required, you just need to let us know the size of fitting and the type of hose you will be connecting to. If you give us this information at the time or ordering we can change the fitting(s) accordingly.

There is also provision to fit an electrical sender unit  suitable for use with gauge IPFR (See accessories page). A mechanical gauge is also available

If you are filling from a deck filler you will need to purchase one of our brass 1 1/2" elbow or straight hosetails (See accessories page).


Capacities and various regular shapes available from 33 litres to 140 litres

Series C Fuel Tanks

The tank comes complete with Inspection hatch including filler, vent, dip pipe and fitting to take a mechanical or electrical  sender



43 Litre Fuel Tank

33  Litre Fuel Tank

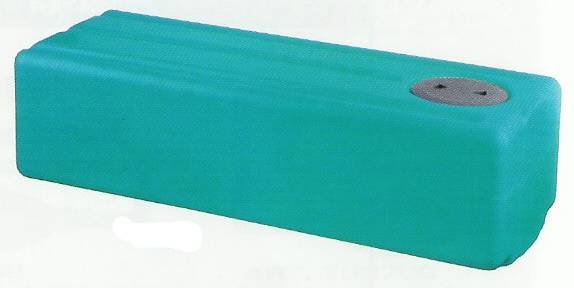

Standard Water Tanks

Water tanks suitable for drinking water.

Manufactured from High Density Polyethylene. These tanks are green in colour and come with an inspection cover.  A hatch, bought separately, provides all the fittings necessary for water filling, venting and extraction.

Capacities and various regular shapes available from 32 to 107 litres








The tank comes with an inspection cover.  A hatch including filler, vent, dip pipe (and fitting to take a mechanical or electrical sender) needs to be bought separately

Series C Fuel Tanks




Standard Waste / Holding Tanks

Waste water tanks suitable for holding tanks or for grey water (washing waster or shower water)

Manufactured from High Density Polyethylene. These tanks are yellow in colour and come complete with an inspection cover which includes a 38mm dip tube and threaded male 1 1/2" BSP holes for inlet, outlet.  A threaded 1" BSP female hole for vent. A threaded 3/8" BSP female hole for flush.

Hosetails and blanks need to be bought separately.

Inlet and Outlet hosetail is 1 1/2" BSP x 38mm and can be straight or elbow

Vent is 1" BSP x 25mm straight or elbow and needs a 1" BSP nipple.

Flush is a 3/8" BSP x 12mm straight only or can be blanked off

Capacities and various regular shapes available from 28 to 103 litres



Please see the Catalogue for prices
